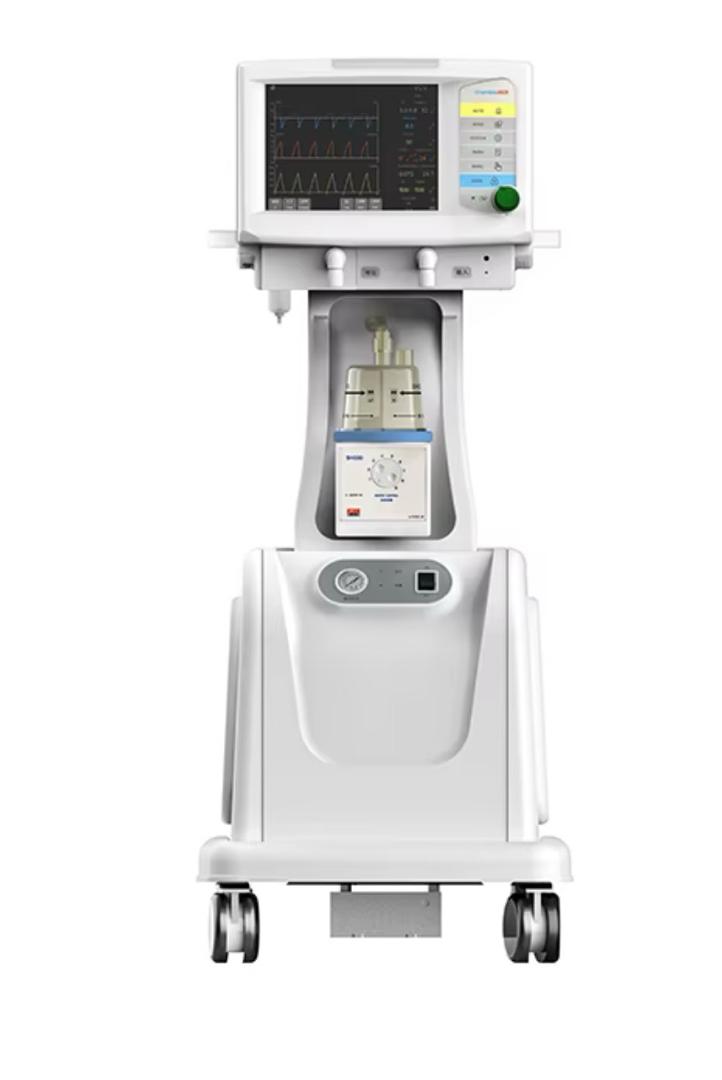

CH-3010 ICU Ventilator
Advanced Multi-Mode Mechanical Ventilation for Adult, Pediatric & Infant Care
The CH-3010 ICU Ventilator is a multi-mode mechanical ventilator designed to provide respiratory support for adult, pediatric, and infant patients in critical-care environments. With a 12.1-inch color touchscreen, multiple ventilation modes, invasive and non-invasive ventilation capability, integrated air compressor, battery backup, intelligent alarm functions, and automatic calibration, the CH-3010 is designed for flexible respiratory management in intensive care and hospital environments.
Whether your facility requires respiratory support for adult patients, pediatric cases, or infants, the CH-3010 provides a broad selection of ventilation modes and adjustable respiratory parameters to support clinical requirements.
Key Features of the CH-3010 ICU Ventilator
1. 12.1-Inch Touchscreen Display
The CH-3010 features a 12.1-inch color touchscreen LCD designed for convenient operation and clear presentation of ventilation information. The display provides graphical waveforms and loops for monitoring respiratory parameters.
2. Multiple Ventilation Modes
The ventilator supports a comprehensive selection of ventilation modes, including:
- VCV – Volume Control Ventilation
- PCV – Pressure Control Ventilation
- SIMV – Synchronized Intermittent Mandatory Ventilation
- SIMV/PSV – SIMV with Pressure Support
- PSV – Pressure Support Ventilation
- CPAP – Continuous Positive Airway Pressure
- BIPAP
- APNEA
- Manual ventilation
- SIGH
- NIV – Non-Invasive Ventilation
- ARPV – Optional
This range of modes provides flexibility for different respiratory-support requirements.
3. Adult, Pediatric & Infant Application
The CH-3010 is designed for use with adult, pediatric, and infant patients, making it suitable for healthcare facilities requiring a versatile ventilator platform.
4. Invasive & Non-Invasive Ventilation
The system supports both invasive ventilation and non-invasive ventilation (NIV), providing flexibility for respiratory-support applications.
5. Integrated Air Compressor
An advanced air compressor is incorporated into the system for air input. The compressor provides an output pressure of approximately 0.4 ± 0.1 MPa with a noise level of ≤50 dB.
6. Automatic Self-Test & Calibration
The CH-3010 incorporates self-testing and automatic calibration functions, supporting operational checks and system setup.
7. Intelligent Alarm System
The ventilator incorporates intelligent visual and audible alarm functions with priority and secondary alarm indications. Alarm monitoring includes parameters and conditions such as tidal volume, minute ventilation, airway pressure, FiO₂, air failure, AC power failure, and backup-related conditions.
8. Battery Backup
The ventilator is equipped with a 12V, 4Ah lead-acid battery with a typical operating runtime of 180 minutes or more, providing additional operating support when required.
9. Nebulization Support
An assistant nebulization treatment function is included, providing an additional respiratory-care capability.
CH-3010 ICU Ventilator Technical Specifications
| Specification | Details |
|---|---|
| Product | CWH-3010 ICU Ventilator |
| Patient Application | Adult, Pediatric & Infant |
| Display | 12.1-inch Color LCD Touchscreen |
| Display Graphics | P-T, F-T, V-T Waveforms |
| Loops | P-V, F-V, F-P |
| Gas Configuration | O₂, Air |
| Pipeline Input Range | 280–600 kPa |
| Air Compressor Output Pressure | 0.4 ± 0.1 MPa |
| Compressor Noise | ≤50 dB |
| Power Supply | AC 220V ±10%, 50Hz ±2% |
| Battery | Lead-acid 12V, 4Ah |
| Typical Battery Runtime | 180 minutes+ |
| Tidal Volume | 20–2,000 mL |
| Pressure Range | 5–80 cmH₂O |
| Respiratory Rate | 1–100 bpm |
| SIMV Respiratory Rate | 1–40 bpm |
| I:E Ratio | 4:1–1:8 |
| Oxygen Concentration | 21–100% |
| P-trigger | -20–0 cmH₂O |
| Apnea Ti | 0–6 seconds |
| PEEP | 0–40 cmH₂O |
| PEEP Type | Integrated, Electronic Control |
| Calibration | Automatic |
| Language | English |
| Communication Ports | RS-232, VGA, Ethernet, USB |
| Dimensions | 45 × 55 × 140 cm |
| Weight | 65 kg |
| Casters | Front wheels with lock |
| Operating Temperature | 5°C–40°C |
| Storage Temperature | -10°C–40°C |
| Humidity | ≤80% |
| Atmospheric Pressure | 960–1040 hPa |
The above specifications are based on the supplied CH-3010 catalog.
Ventilation Modes
The CH-3010 supports multiple ventilation modes for flexible respiratory management:
VCV: Volume Control Ventilation
PCV: Pressure Control Ventilation
SIMV: Synchronized Intermittent Mandatory Ventilation
SIMV/PSV: Synchronized Intermittent Mandatory Ventilation with Pressure Support
PSV: Pressure Support Ventilation
CPAP: Continuous Positive Airway Pressure
BIPAP: Bilevel Positive Airway Pressure
NIV: Non-Invasive Ventilation
APNEA: Apnea ventilation
MANUAL: Manual ventilation
SIGH: SIGH function
ARPV: Optional function
Designed for Critical-Care Respiratory Support
The CH-3010 combines a broad range of ventilation modes with touchscreen operation, adjustable ventilation parameters, alarm monitoring, battery backup, and integrated air-compressor functionality.
Its adult, pediatric, and infant applications make it a flexible option for healthcare facilities requiring a single ventilator platform capable of supporting different patient groups.
Who Can Use the CH-3010 ICU Ventilator?
The CH-3010 can be considered for healthcare facilities and departments requiring mechanical ventilation equipment, including:
- Intensive Care Units (ICU)
- Hospitals
- Critical Care Units
- Emergency & Critical-Care Areas
- Pediatric Care Units
- Infant Care Areas
- Operating and recovery environments where mechanical ventilation equipment is required
Final clinical application and configuration should be determined by qualified healthcare professionals according to institutional protocols and patient requirements.
Why Choose the CH-3010 ICU Ventilator?
Multi-Patient Application
Designed for adult, pediatric, and infant patients, providing flexibility for facilities managing different patient categories.
Comprehensive Ventilation Modes
Multiple ventilation modes allow the system to accommodate a wide range of respiratory-support requirements.
Touchscreen Operation
The 12.1-inch touchscreen interface is designed for convenient operation and display of respiratory information.
Battery Backup
The integrated battery provides a typical runtime of 180 minutes or more.
Integrated Air Compressor
The ventilator includes an advanced air compressor for air input.
Monitoring & Alarm Functions
Visual and audible alarms help identify specified ventilation and system conditions.
Automatic Calibration
The automatic calibration function supports convenient system preparation and operation.
Connectivity
RS-232, VGA, Ethernet, and USB communication interfaces are provided.
Buy CH-3010 ICU Ventilator in Nigeria
Looking for an ICU ventilator in Nigeria for your hospital, intensive care unit, pediatric facility, or healthcare project?
Anelpat Medical Company Limited supplies medical equipment and healthcare solutions to healthcare facilities and medical professionals.
Contact Anelpat for product availability, current pricing, delivery information, installation requirements, technical support, and procurement assistance for the CH-3010 ICU Ventilator.
Request a Quote
Product: CH-3010 ICU Ventilator
Application: Adult, Pediatric & Infant Respiratory Support
Category: ICU / Critical Care Equipment
Contact Anelpat Medical Company Limited for pricing and procurement information.
Frequently Asked Questions
What is the CH-3010 ICU Ventilator?
The CH-3010 is a multi-mode ICU ventilator designed for respiratory support in adult, pediatric, and infant applications.
Does the CH-3010 support invasive ventilation?
Yes. The catalog states that the CH-3010 supports invasive and non-invasive ventilation.
Does the CH-3010 support NIV?
Yes. NIV (Non-Invasive Ventilation) is among the listed ventilation modes.
What ventilation modes does the CH-3010 have?
The system supports VCV, PCV, SIMV, SIMV/PSV, PSV, CPAP, BIPAP, APNEA, Manual, SIGH, and NIV, with ARPV listed as optional.
What is the tidal volume range?
The specified tidal volume range is 20–2,000 mL, with 10 mL listed as optional.
What is the oxygen concentration range?
The oxygen concentration range is 21–100%.
Does the ventilator have a battery?
Yes. It uses a 12V, 4Ah lead-acid battery, with a typical runtime of 180 minutes or more.
Does the CH-3010 have an integrated air compressor?
Yes. The catalog specifies an integrated advanced air compressor for air input.
What type of display does the CH-3010 use?
It has a 12.1-inch color LCD touchscreen with graphical waveform and loop displays.
Can the CH-3010 be connected to other systems?
The catalog lists RS-232, VGA, Ethernet, and USB communication ports.
CH-3010 ICU Ventilator – Get a Quote Today
Equip your critical-care environment with a versatile multi-mode ventilator designed for adult, pediatric, and infant respiratory support.
Contact Anelpat Medical Company Limited today to request a quotation, product availability, technical information, and procurement support for the CWH-3010 ICU Ventilator.
