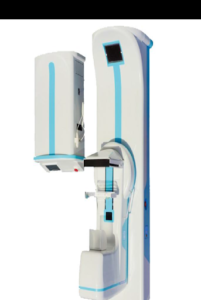

Mammogram

X-ray Generator

Complete solid-state high-frequency, high-voltage generator.

Generator Type: High Frequency Inverter; 80 kHz

Input Power： Single phase 220VAC, 50/60Hz

Radiographic Ratings: Large Focal Point 20-35kV/10-510mAs

Small Focal Point 20-35kV/10-100mAs

Power Rating：6.2kW

X-ray Tube:

• Focal Spot Size： Dual Focus 0.2 / 0.4mm
• Target Material: Molybdenum (Mo)
• Port Material: Beryllium (Be)
• High-speed anode drive: 2800 /1000rpm
• Target angle:12°/12°
• Anode Heat Storage： 100KJ（150KHU）
• Anode Cooling: Air cooling
• Filtration： Mo（0.03mm），Al（0.5mm)
