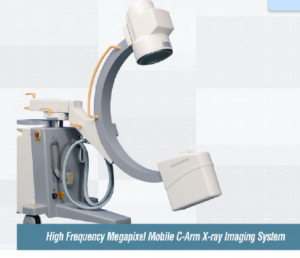

    High Frequency Megapixel Mobile C-arm X-ray Imaging System:

     Widely use in operating room, X-ray department, emergency room, intervention and peripheral angiography. General surgery, urology, chest surgery, trauma, abdominal surgery, orthopedics, bone reduction and fixation, endoscopy and surgery. Intervertebral disc angiography and angioplasty.

    Key features:

    • With HF & HV generator, inverter, and High quality image intensifier, the x-ray generator  can work stably. It also reduces the damage for the doctors caused by radiation.
    • 10.4″LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with an ordinary keyboard, our LCD display is not easy to be oxidized beside, the trouble will be displayed, which will improve the efficiency of fault diagnosis.
    • Pulse and boost fluoroscopy provides all kinds of size of patients with clear diagnosis.
    • With a steering handle, it can adjust the direction quickly when moving, parallel movement function is also available.
    • Equipped with unique block line wheels, it can avoid accident when the machine moves.
    • Large free space in arc: the space can reach 800mm, which is convenient for operation.
    • 9″/6″/4.5″ three fields of vision:it facilitates diagnosis of partial enlargement.
    • CCD camera with rotation function: range of camera rotation: 360°.
    • Original Korean linear slide rail can make the the movement of the machine flexibly.
    • Applied with Omron Relay, the noise can be reduced and the lifetime of the equipment increased.

    Main Specification:

    • HF generator: 120KV,5kW ,40kHz
    • Fluoroscopy mode:
    1. Fluoroscopy mode: 40~120kv0.5~5mA (KV manual and automatic).
    2. Pulse fluoroscopy 40~120kv  0,5-5mA
    3. Boost fluoroscopy 40~120kV 5~10mA
    4. Photography 40~120kV  1~250mAs
    • X ray tube: Dual-focus Rotating anode:0.3mm/0.6mm (Italy IMD Technology)
    • Image intensifier: Three fields of vision 9, 6, 4.5   French Thales Brand
    • CCD camera: 1 million pixel, Japanese Watt Brand, 360° rotation
    • Image system:
    1. Recursive Noise Reduction
    2. Frame freezing
    3. Multi frame image storage
    4. Image conversing and rotating
    5. Screen display with image comparison
    • Mechanical motion specifications:
    1. Verticaltravel:0-400mm
    2. Horizontaltravel:0~200mm
    3. Rotation about horizontal axis:±180°
    • C-arm dimension:
    1. Distance of focal spot to image generator(SID):1000mm
    2. Depth in arm≥650mm
    3. Mobile stand :1800mm*800mm*1850mm
    4. Image system: 750mm*530mm*1680mm
    • Standard configuration:
    1. High resolution CCD camera:1set
    2. x-ray generator:1set
    3. 9” image intensifier:1set
    4. image processor
    5. 23” LCD high definition display 1 set
    6. Mobile stand :1 set
