300mA Stationary X-ray Machine

GET A QUOTE

    OVERVIEW

    What you need to know

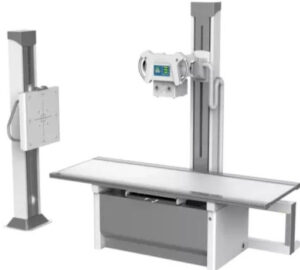

    300mA Stationary X-ray Machine

    Medical diagnosis X-ray Machine has, High frequency, high voltage generator, Microcomputer console, X-ray tube assembly, X-ray tube, Collimator, Radiography Table, Vertical Bucky stand

    • Bucky-stand Grid: 15＂×18＂
    • Radiography Table Grid: 15＂×18＂
    • High visual and operational console
    • Anode rotation speed: 2800 rpm
      • Anode heat capacity：100kJ
      • Cassette Size：5＂×7＂～17＂×17＂
      • Vertical stroke: the minimum distance from the top of the cassette is not more than 580mm, and the stroke is not less than 1360mm;
      • Radiography size：5＂×7＂（12.7cm×17.8cm）；8＂×10＂（20.3cm×25.4cm）；10＂×12＂（25.4cm×30.5cm）；11＂×14＂（28.0cm×35.6cm）；14＂×14＂（35.6cm×35.6cm）14＂×17＂（35.6cm×43.2cm）；14＂×17＂（43.2cm×43.2cm)
      • Tube current nominal electric power adjustment range： 10mA～320mA , 14 steps
      • Tube voltage adjustment range： 40kV～125kV ，one step 1kV
      • Exposure time range：0.002s～6.3s （2ms～6300ms）
      • Current time product range：0.1mAs～630mAs
      • Double focus: 1. Current time product range 0.6mm (small focus) /2mm (large focus)
      •
