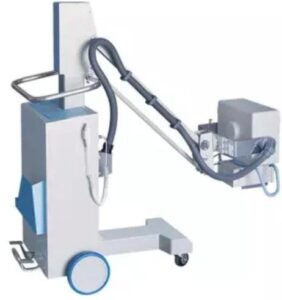

Single focus, full-wave rectifier, combined X-ray generator
SCM control (easy to maintain and repair)
High visual and operational console
Pre-store 8 kinds of photography parameters and select, modify, store the parameters under the condition of choice Power voltage (V), photograph kilovolt (KV) infinitely variable control
Premier high voltage with high power SCR zero control circuit
Function of load chains, exposure time control, auto alarm, preheat filament, subassemblies’ temperature control, and so on.
Cantilever structure makes the small volume and easily moving
Main technical data:
Power supply
Voltage: 180-240 V
Frequency: 50HZ
Internal resistivity <1.0Ω
Current 35A instant
Rating ≥8k VA
Photography:
Voltage: 50-90 kV
Current: 16mA 32mA 63mA 100mA
Time 0.08s ~6.3s
X-ray tube focus 4.3mm x 4.3mm
Maximum remote control distance: 7m
Maximum height of focal spot from floor>1775 mm
Minimum height of focal spot from floor <480 mm
Columns turning angle: ±45°
Collimator: maximum film size at 650mm focal distance: 350 mm x 350 mm
